MDX

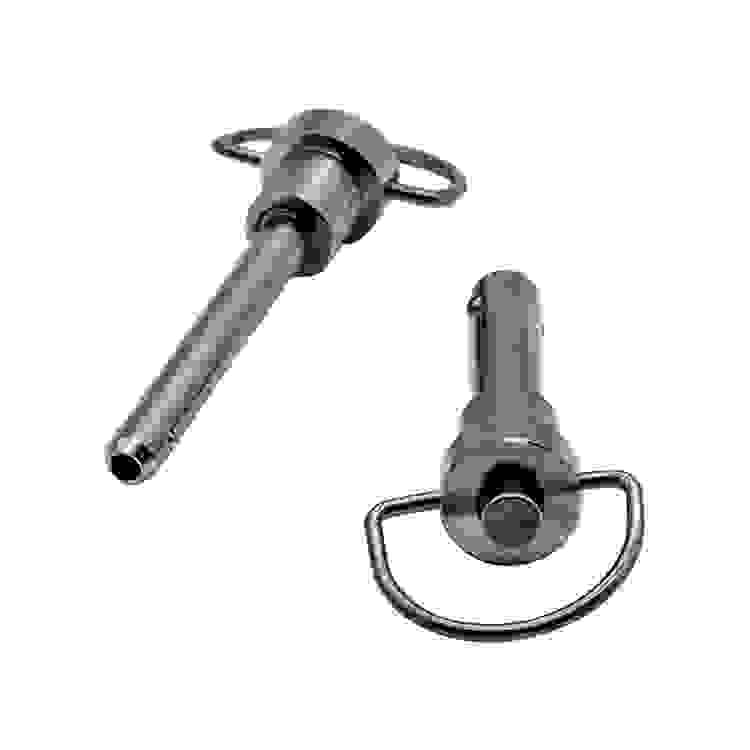

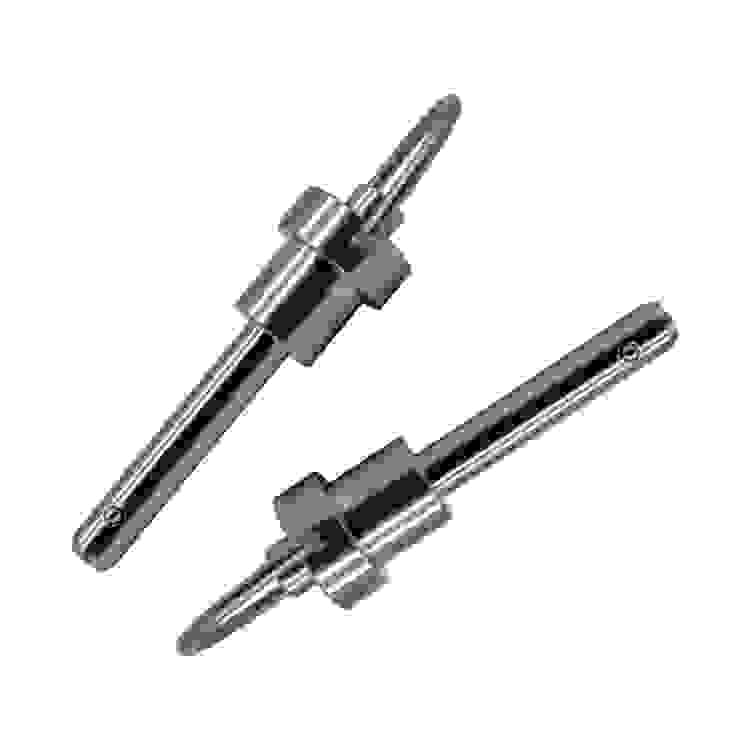

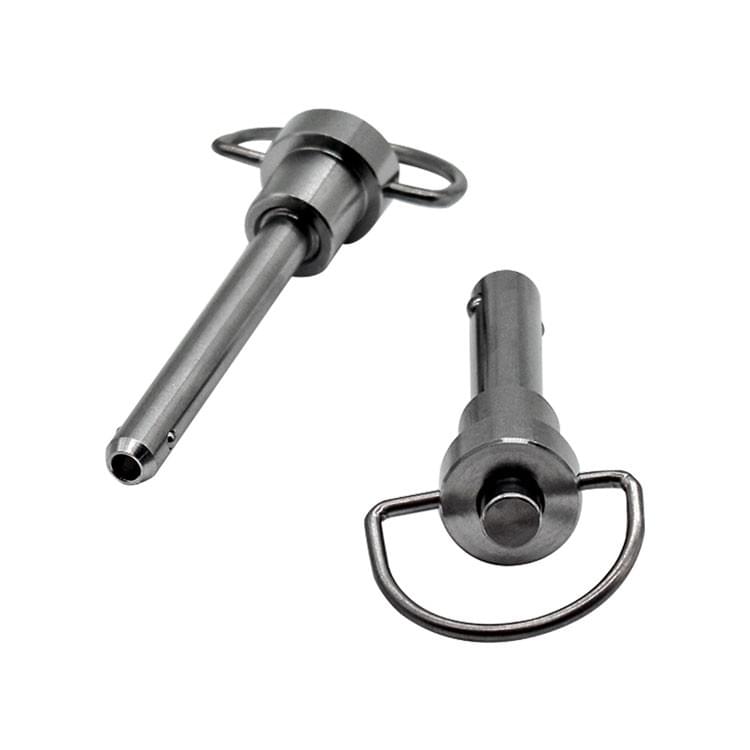

Knob-Grip Locking Quick-Release Pins
Description
D-type quick release pin is suitable for operating environment with small installation space
Handle material: Stainless steel
Button material: Stainless steel or aluminum with blue surface. It can be adapted to harsh environment
Main materials for export: S45C / AISI303 / AISI304 / AISI316, etc
With pull ring, it is easy to connect with safety rope. Two spring controlled stainless steel provide stable axial locking force

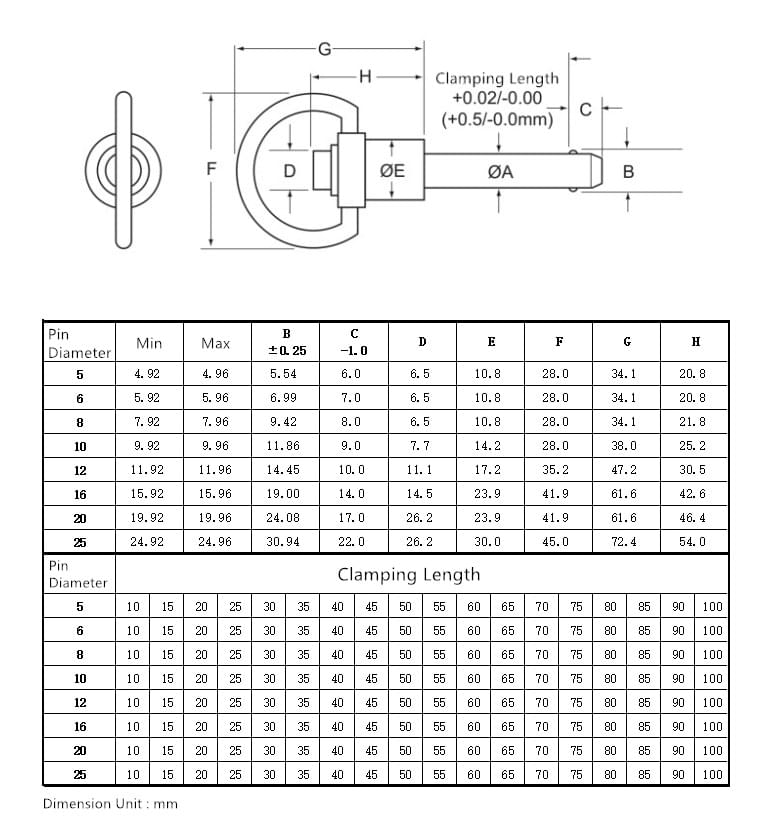

Select The Proper Quick Release Ball Lock Pin
1.Select the proper pin diameterStandard inch sizes are 3/16", 1/4", 5/16", 3/8", 1/2" and 5/8”. Our standard metric sizes are 5mm, 6mm, 8mm, 10mm, 12mm and 16mm2. Select the proper clamping lengthStandard inch clamping lengths range from 1/2" up to 6" and our metric grip lengths range from 10mm up to 100mm depending on the diameter. Custom lengths are also available3. Select the proper shank material-300 Series Stainless Steel-17-4PH Stainless Steel4. Select the proper handle style
