MS1071
INDEXING PLUNGERS

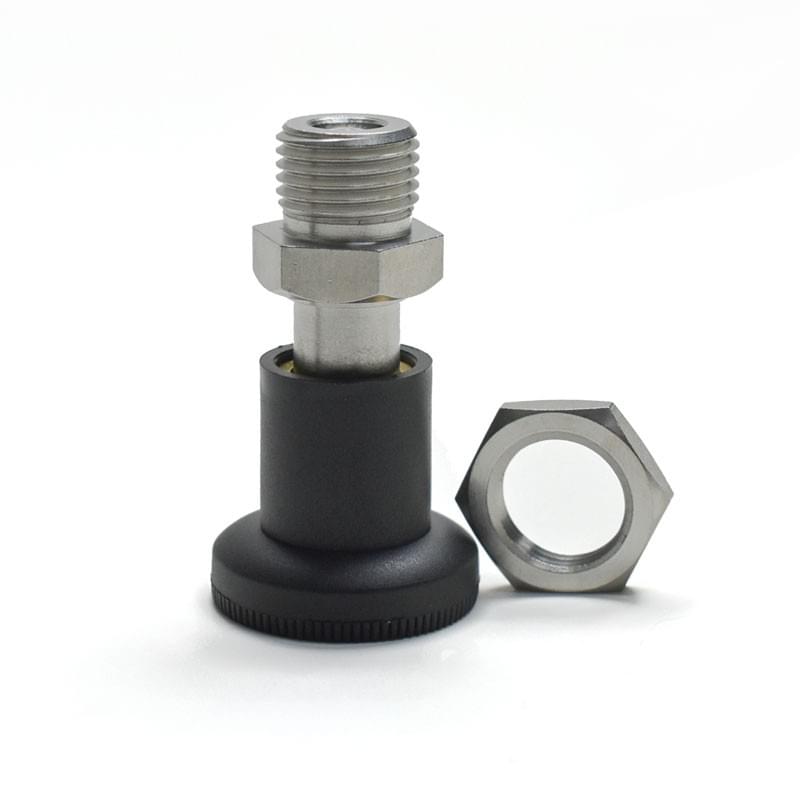

Stainless Steel Version
MS1071-SS

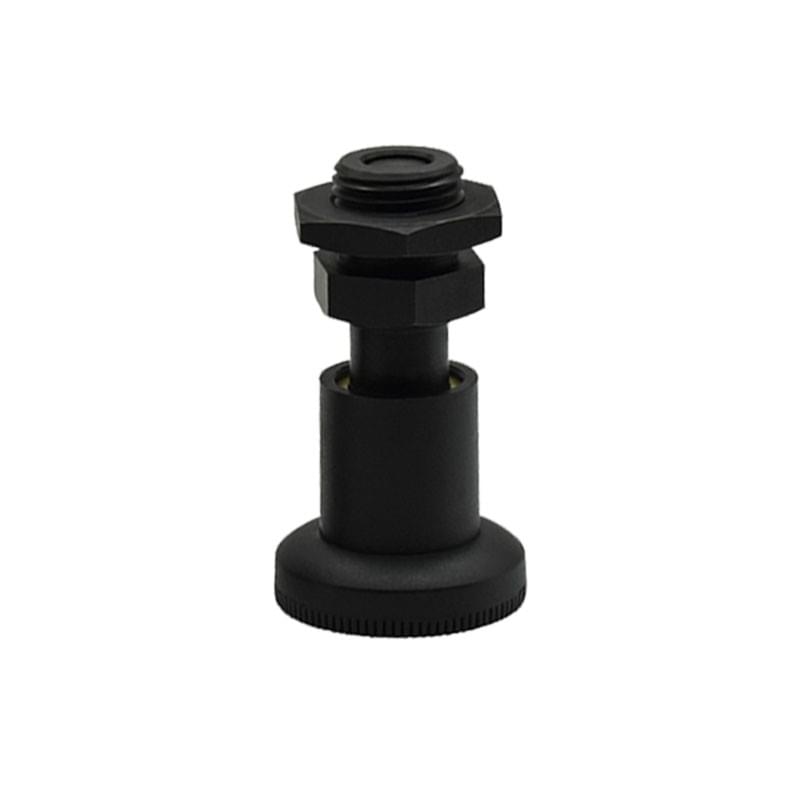

Carbon Steel Version
MS1071-ST
Description
MS1071-ST:Thread: Steel, black surface finished
Pin head: Black treated steel surface, pin head for hardening treatment. It is recommended to install in the hole with tolerance in accordance with H7
Lock nuts: Steel with black surface finished
Knurled knob: Black high strength PA high tech polymeric material, matte finish, solvent resistance, oil, grease and other chemical solvents
Type A with pinch hand, no locking nut
Type AK with belt pincher and lock nut
The following accessories are available on demand (if sufficient quantities are ordered) when mounting the indexing pins to thin walls, a distance bushing with black oxide coating can be used to compensate for the length of the thread
MS1071 compact indexing pin with fixed stop is suitable for use in sheet metal installation and where the pin head needs to be locked in the retracted positionMS1071-SS:Thread: AISI303 stainless steel
Pin head: nickel plated AISI303 stainless steel, it is recommended to fit with the hole meeting the H7 tolerance
Lock nut: AISI304 stainless steel
Knurling handle: high elastic polyamide (PA) high tech
Polymer, black, matt finish. Solvent and oil resistance. Grease and other chemical solvents
Standard model: type A, with knob, without lock nut.
AK type with knob and lock nut
The following accessories are available on demand (if the order quantity is sufficient). When the pin head is installed to the thin wall, stainless steel distance bushing can be provided to make up for the length of thread.
Features: ms1071s indexing pin with fixed stop has compact size. It can be used for sheet metal installation and occasions where the pin head needs to be locked in the retracted position.
AISI303 stainless steel has corrosion resistance. Under special sanitary, climatic and environmental conditions, indexing pins made of this material can be used on all machinery and equipment
