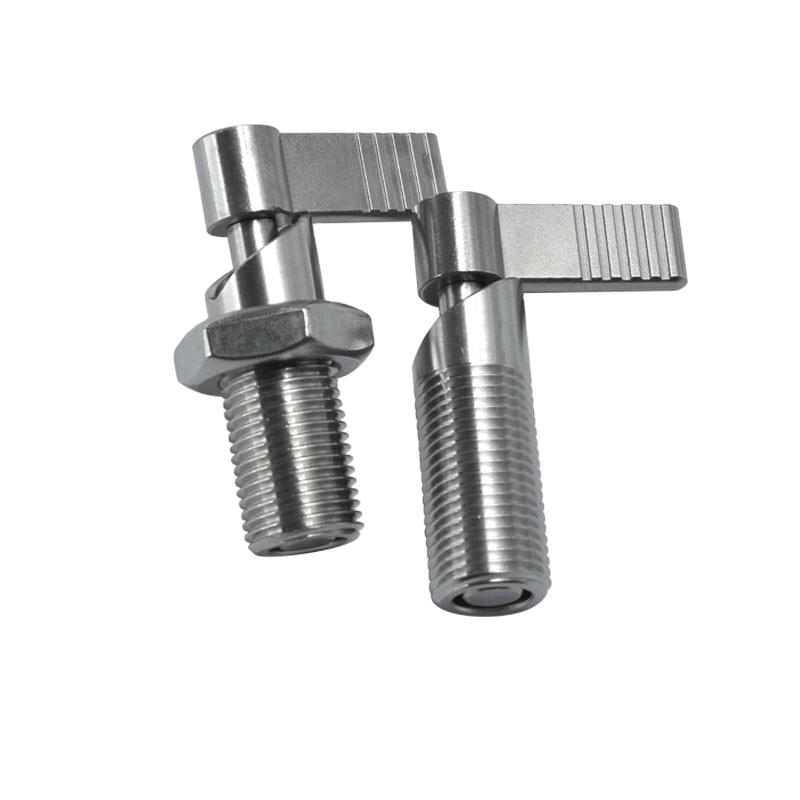

Thread: AISI303 Stainless steel

Pin head: Refined turning and plating town AISI303 stainless steel. It is recommended to fit with holes conforming to H7 tolerance.

Lock nut: AISI304 stainless steel

Handle: AISI316LHC Stainless steel

Rubber sleeve: High elastic polyamide based (PA) high-tech polymer, black, matt finish. Resistant to solvents, oil, grease and other chemical solvents

Standard model:

MS1120: (default)no rubber sleeve, with lock nut

MS1121: Nut with rubber sleeve and locking circuit

Feature application: MS1120-SS handle indexing pin is suitable for occasions where the pin head needs to be retracted quickly. AISI303 stainless steel has corrosion resistance. Under special sanitary, climatic and environmental conditions, handle indexing pins made of this material can be used on all machinery and equipment

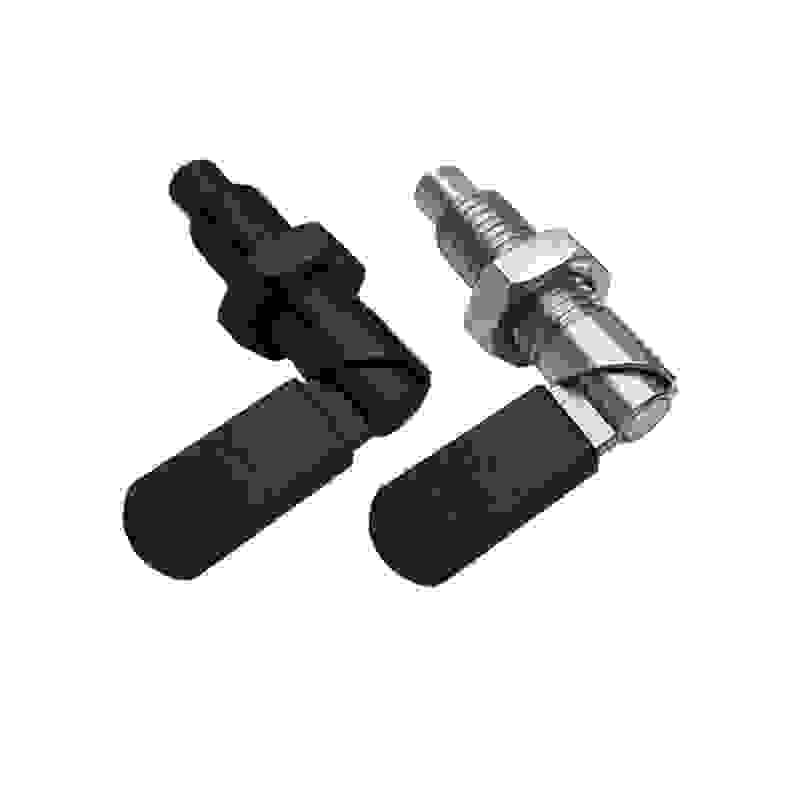

MS1121-ST

Thread: Steel, black finish

Pin head: Fine lathe pin with black finish.It is recommended to install the lock nut in the hole specified in tolerance H7, made of steel, with black finish on the surface.

Handle : Steel, black finish

Rubber sleeve: High-tech polyamide (PA) polymer with high elasticity, black, Matt finish.Resistant to solvents, oils, fats and other chemical solvents.

Standard Model: MS1120: Default no rubber sleeve, with lock nut MS1121 rubber sleeve and lock nut.
Application Characteristics: MS1120 Handle Grading Pin is suitable for situations where the pin head must be retracted quickly.
