MS1130-SS

Description

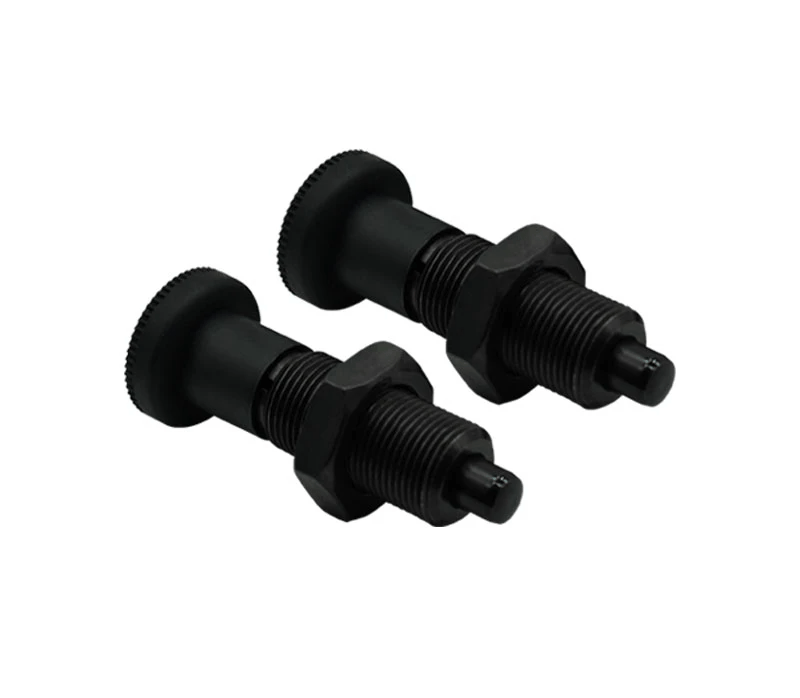

MS1130-ST

Body: Steel, with black surface treatment.

Pin head: The surface is black, steel, and the pin head is hardened. It is recommended to fit with holes conforming to H7 tolerance.

Lock nut: steel, surface black treatment.

Knurled Handle: High elastic polyamide (PA) high-tech polymer, black, matt finish. Resistant to solvents, oil, grease and other chemical solvents.

Standard model: Type A, with handle, without lock nut

Type AK with knob and lock nut (default).

Application: MS1130 indexing pin is suitable for occasions requiring positioning operation.

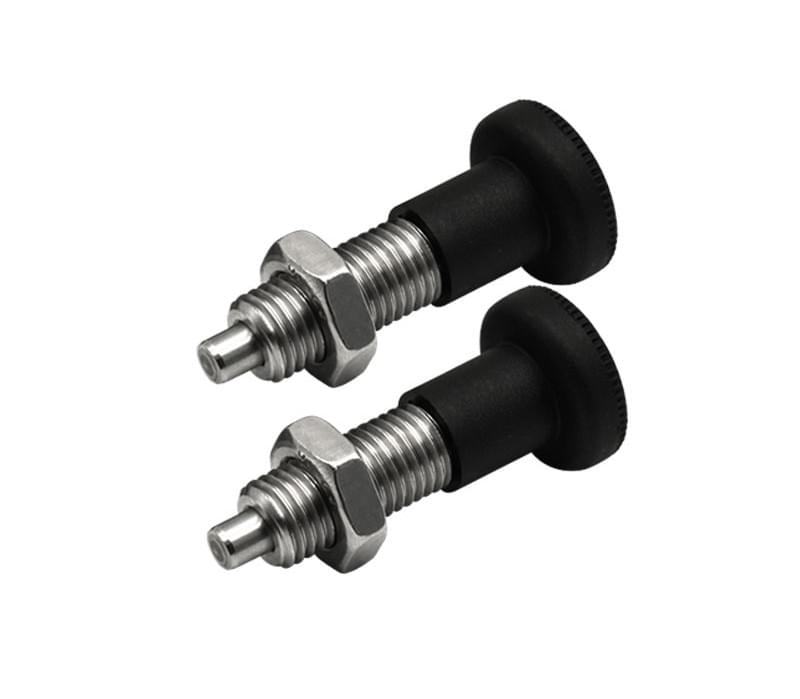

MS1130-SS

Thread: AISI303 Stainless steel.

Pin head: Nickel plated AISI303 stainless steel.It is recommended to install in holes with tolerances in accordance with H7.

Lock nut: AISI304 stainless steel.

Knurling knob: High-elastic polyamide (PA) high-tech polymer black, Matt finish.Resistant to solvents, oils, greases and other chemical solvents.

Model: Type A with knob, no lock nut.
Type AK with knob and lock nut (default).

The threaded lever can be fitted on the pin without knob at the request of the customer so that the customer can select the knob on his own or connect directly with other operating mechanism of the machine.
Feature application: MS1130-SS type indexing pin is suitable for applications requiring positioning operation. AISI303 stainless steel is corrosion resistant and can be used on all machinery and equipment under special hygienic, climatic and environmental conditions with a pin made of this material.
