MS1171
Indexing Plungers

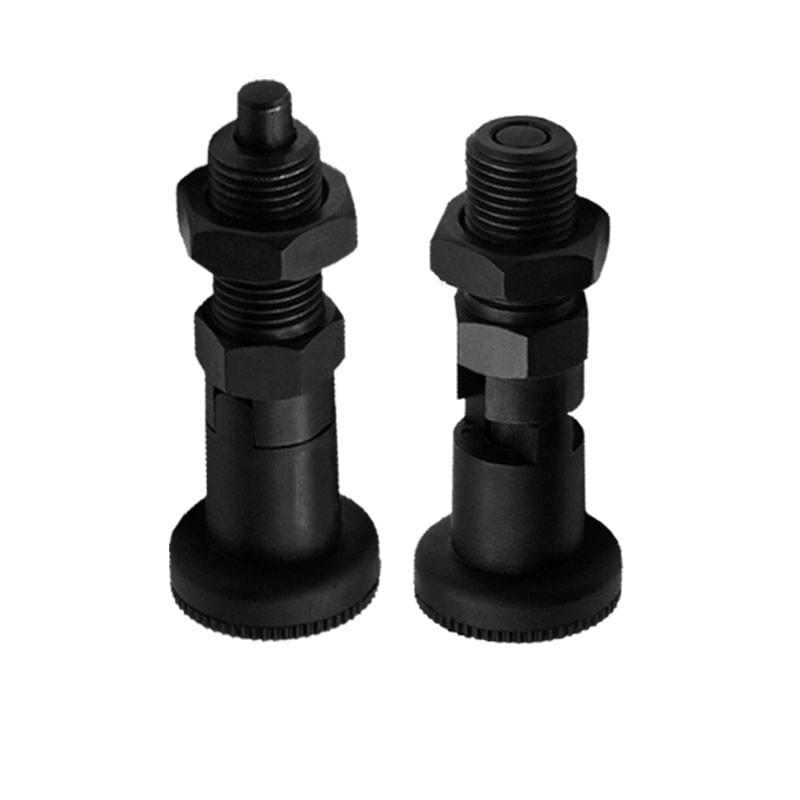

MS1171-ST
Blackened & Pin hardened

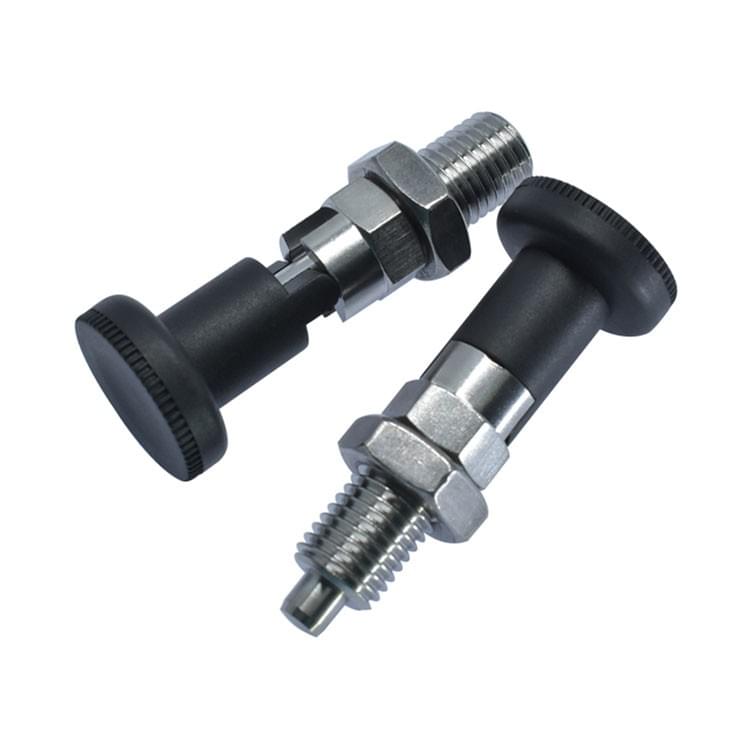

MS1171-SS
Pin chemically nickel plated
Description
MS1171-ST
Thread: Steel, black finished
Pin head: The surface is made of black treated steel and the pin head is hardened.Suggested hole fit to H7 tolerance
Lock nut: Steel, black finish
Knurling knob: High-elastic polyamide (PA) high-tech polymer, black, Matt finish.
Solvent resistance, oil, grease and other chemical solvents
Standard model: Model A with knob, no lock nut.
AK type knob and lock nut
Application: Model MS1171 dispensing pin with fixed stop is suitable for locating operations where required and where the pin head needs to be locked in retracted position.
MS1171SS
Thread Body: AISI303 Stainless Steel
Pin head: Nickel plated AISI303 stainless steel. It is recommended matching with holes meeting H7 tolerance
Lock nut: AISI304 Stainless steel
Knurling knob: AISI303 stainless steel, non-removable. Solvent resistance, oil, grease and other chemical solvents
Standard model: Model A with knob, no lock nut. AK type with knob and lock nut (default)
Application: Model MS1171 dispensing pin with fixed stop is suitable for locating operations where required and where the pin head needs to be locked in retracted position.
AISI303 stainless steel is corrosion resistant
