MS2170
Coarse Tooth Indexing Plungers
MS2170-ST
MS2170-SS

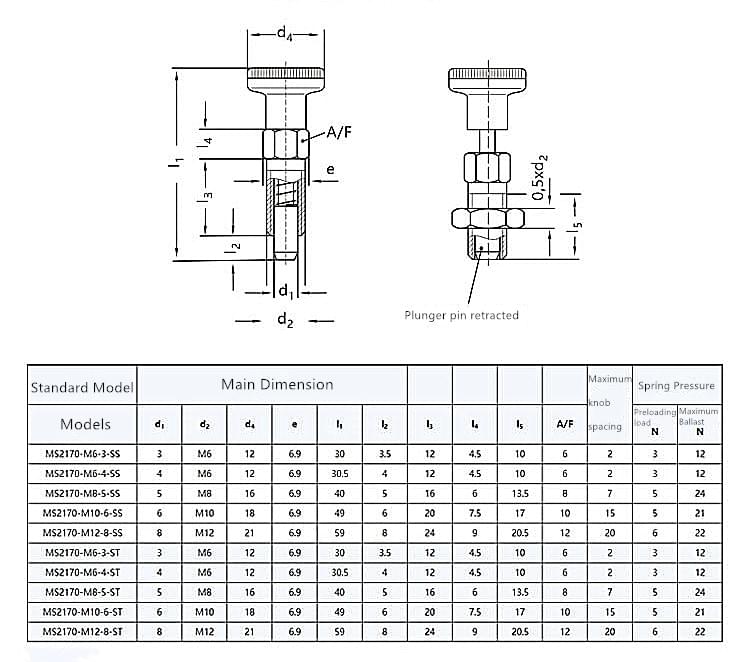

Specification
MS2170-STThread body: Galvanized steel
Pin head: AISI303 Stainless steel, recommended to be installed in the hole tolerance +0.03/+0.08
Lock nuts: Galvanized steel
Knurled: High elastic PA high tech polymer, black, matte finish, solvent resistant, oil, grease and other chemical solvents
Standard model: Type B with pinch hand
BK type with belt pinch and lock nut
Feature application: MS2170 indexing plunger is suitable for situations requiring positioning operation. MS2170-ST is a relatively low cost of the indexing plunger series, its outstanding advantage lies in the size of small, suitable for the occasion without high precision indexingMS2170-SS
Thread body: AISI303 Stainless steel
Pin head: AISI303 stainless steel. It is recommended to fit holes with a tolerance of +003/+008.
Knurled hand: High elasticity polyamide (PA) high technology polymer, black, matte finish solvent resistant, Oil, grease and other chemical solvents
Standard model: Type B with pinch hand, no locking nut.
Type BK with pinch hand and locking nut (default)
MS2170-SS indexing pin is suitable for positioning operation.
MS2170-SS is a relatively low cost indexing pin series, its outstanding advantage is small size. Suitable for occasions where high precision indexing is not required
Due to the small size of type MS2170-SS indexing pins, it is recommended to operate in accordance with the maximum tightening moments listed in the table above during the assembly process. Type AS303 stainless steel is corrosion resistant and indexing pins made from this material can be used on all machinery and equipment under special sanitary, climatic and environmental conditions
