MS2171
Coarse Tooth Indexing Plungers With Rest Position
Description

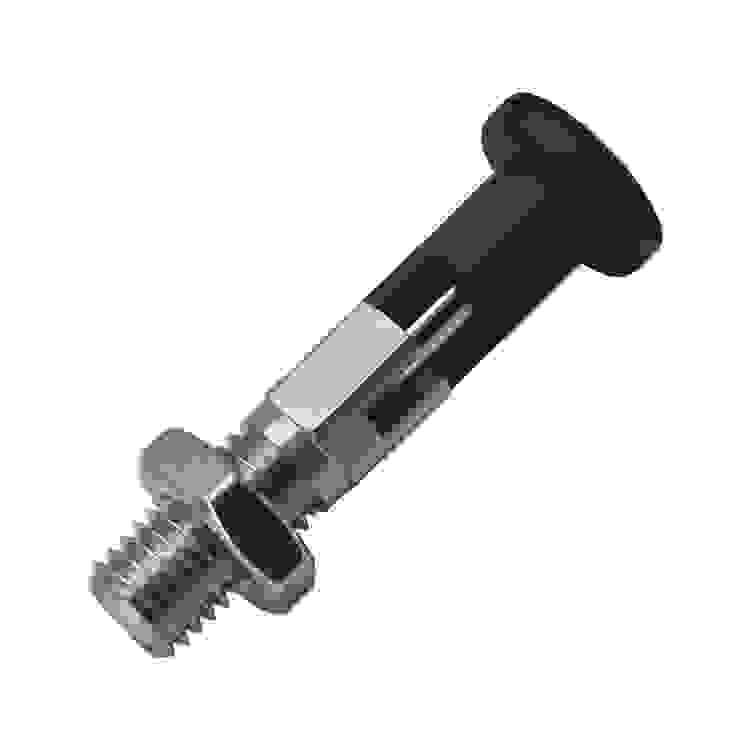

MS2171-STThread body: Galvanized steel.
Pin head: AISI303 Stainless steel.It is recommended to fit holes with tolerances of +003/+008.
Lock nut: Galvanized steel.
Knurling knob: High-elastic polyamide (PA) high-tech polymer with a black matt finish.Resistant to solvents, oils, greases and other chemical solvents.
Standard model: C type with knob, no lock nut.CK type: with knob and lock nut, conforming to ISO4035
Model MS2171-ST pin with fixed stop applies where positioning is required and where the pin head needs to be locked in retracted position
MS2171-ST is a relatively inexpensive distribution system with a prominent advantage of compact size.Suitable for applications without high-precision indexing.

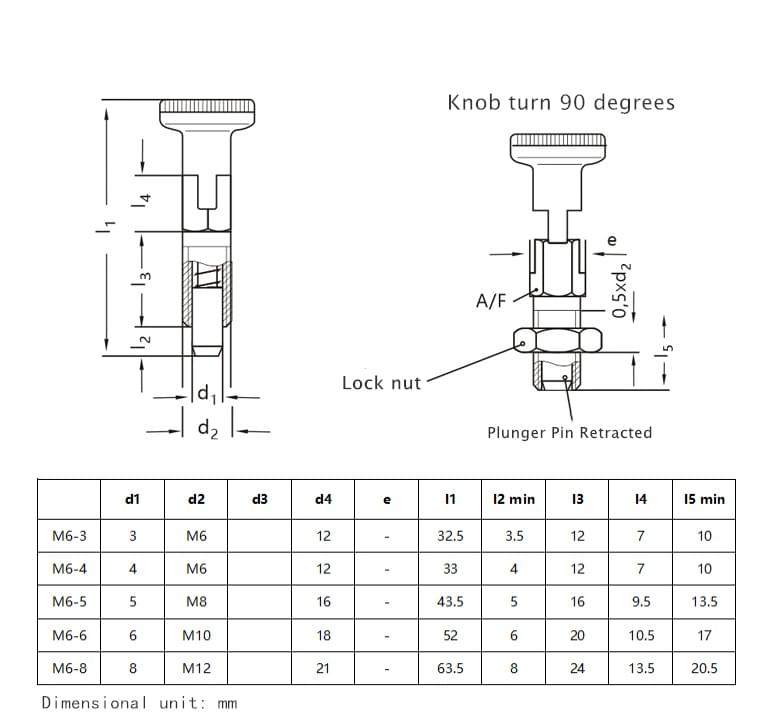

Due to the compact size of the type MS2171-5T indexing pin, it is recommended that the maximum tightening torque listed in the table above be observed during assembly.MS2171-SSThread body: AISI303 Stainless steel

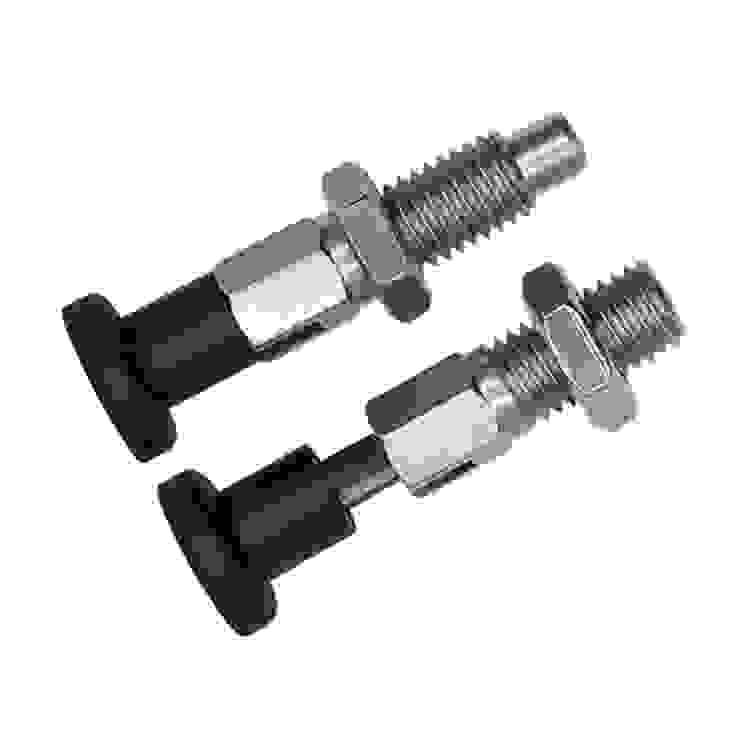

Pin head: AISI303 Stainless steel. Recommended to fit holes with a tolerance of +003/+008
Lock nuts: AISI303 Stainless steel
Knurled hand: High elastic PA high tech polymer, black, matte finish solvent resistant,
Oil, grease and other chemical solvents
Standard model: Type C with pinch hand, no locking nut.
CK type: with pinch and lock nut
Feature Application :MS2170-SS indexing pin is suitable for usage where positioning operations are required and where the pin head needs to be locked in the retracted position
