Cam action indexing plunger
How to use the function of cam action indexing plunger？

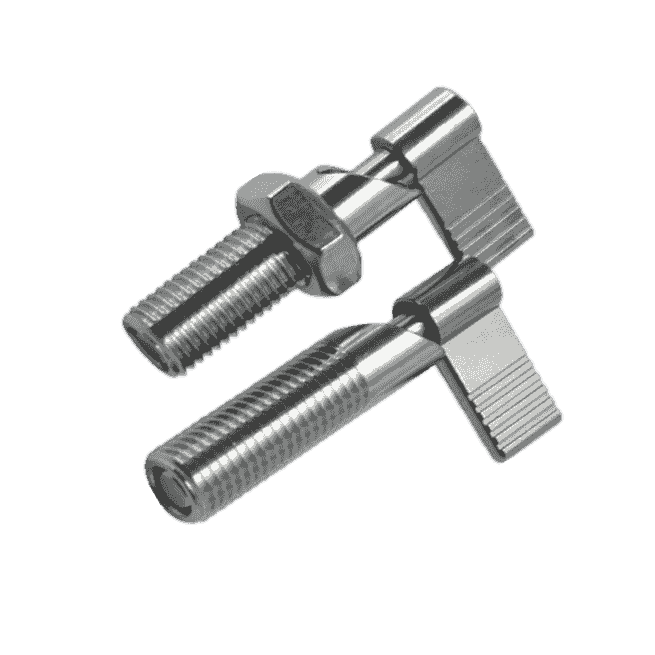

The cam action indexing plunger is a simple and quick positioning structure.
It can quickly and accurately locate the angle and movement of mechanical structures. The handrail has a non-slip and anti-static nylon rubber sleeve.

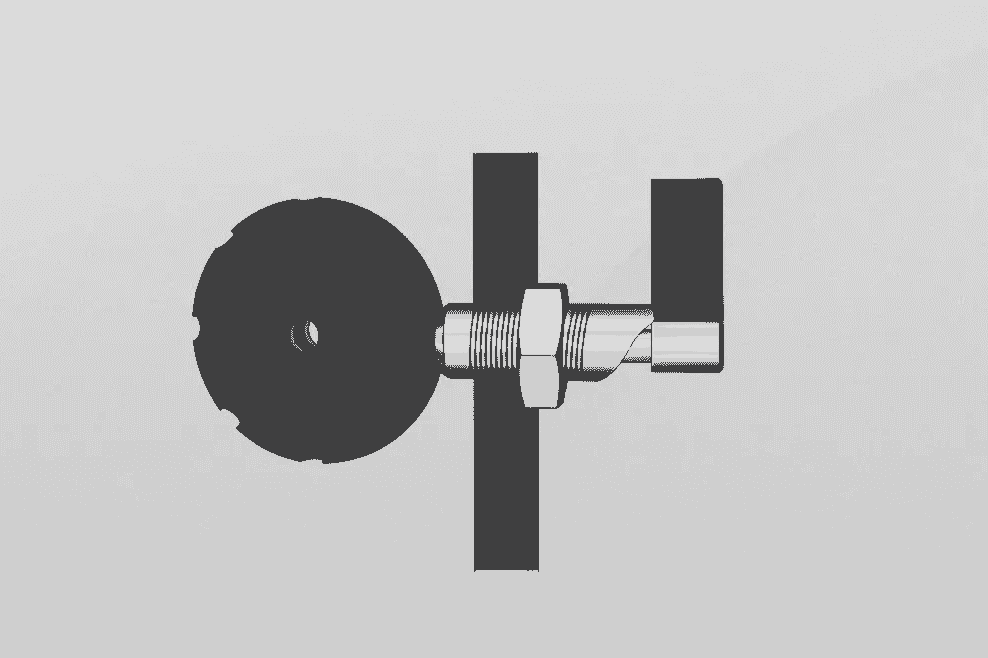

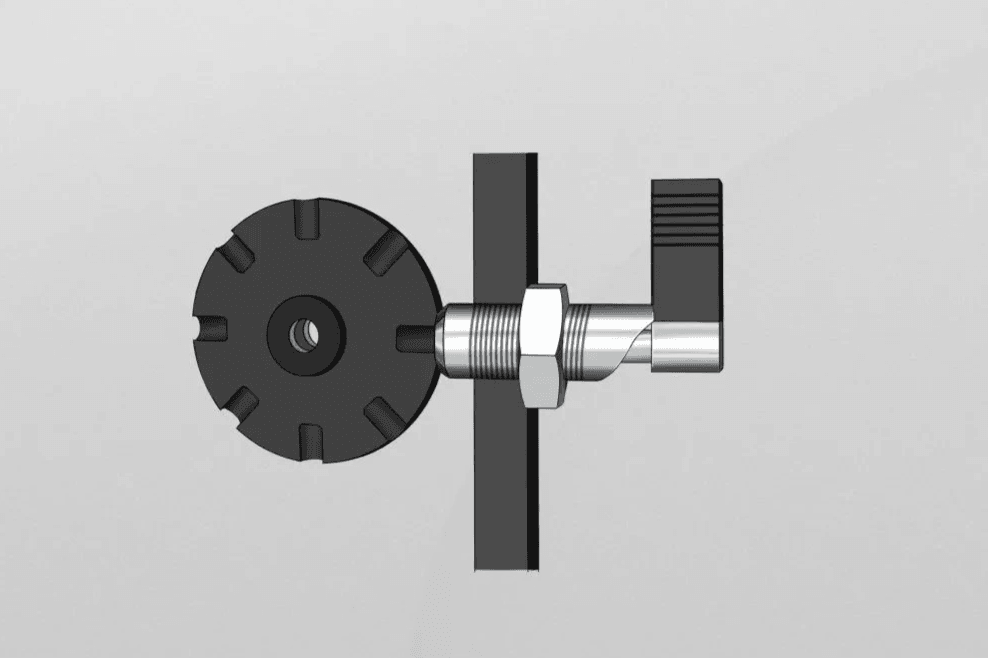

This cam action indexing plunger is used in limited spaces to adjust the height of the product through nut cooperation.
Working principle cam action indexing plunger
The operating principle of this structure is that when the L-shaped section at the top is subjected to a rotational force, it causes the pin in the middle to generate a pulling force to the right, thereby retracting the pins from the actuating component into the threaded interior. The L-shaped indexing plunger is a relatively effort-saving type of indexing pins structure, suitable for use in relatively narrow spaces with specific left-right spatial requirements. This cam indexing plunger can also utilize an unlocked mechanism to achieve a structure that prevents misoperation.
